The DPK-C type double pallet handler with 2400 mm long forks can pick up 2-4 pallets. This fork length makes possible to load and unload vehicles from one side. Sideshifting and fork positioning are hydraulically operated. The strong frame, compact design and the high-quality parts maximises service life and safe working.
By handling 2, 3 or 4 pallets at one time by the multiple sideshifts from Durwen, efficiency can be inceased dramatically. Multiple sideshifts have fork carriages with fied fork set spread.
The DST 1-0 type double sideshift has two fork carriages. One carriage is fixed, one carriage is hydraulically driven. It has also one main sideshift which moves the complete unit. The DST 1-0-1 type triple sideshift has three fork carriages. The centre carriage is fixed, the outer carriages are hydraulically driven. It also has one main sideshift. The DST 1-1 type triple sideshift has two carriages, both are hydraulically driven. It also has one main sideshift which moves the complete unit.
A DST 1-0 típusú dupla oldalmozgató két villakocsival rendelkezik. Az egyik villakocsi rögzített, a másik mozgatható. Emellett a fő oldalmozgató munkahengerrel az egész szerkezetet mozgatja.
A DST 1-0-1 típusú tripla oldalmozgató három villakocsival rendelkezik, melyek közül a középső rögzített, a két szélső állítható. Ez a típus is rendelkezik a már említett fő oldalmozgató munkahengerrel is.
A DST 1-1 típusú tripla oldalmozgató adapter mindkét villakocsija állítható, akár egymástól függetlenül is, továbbá a fő oldalmozgató munkahengerrel az egész szerkezetet mozgatható.
With the DUZ type rotating fork clamp we can carry loads not only on the forks but also between the forks by clamping. The forks spread beyond the frame width. It is ideal for emptying containers, boxes, etc., as it can be rotated endlessly 360 degrees. The DUZ-S type has additional constant sideshift. Fork clamps can be ordered only with bolt-on forks.

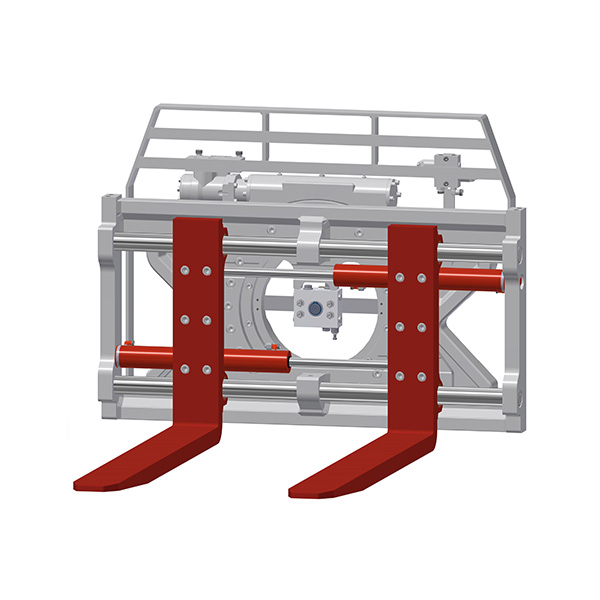

The high-performance DZVW-G type rotating fork positioner rotates 360° and offers outstanding durability and excellent visibility. The double chrome axis guideways are particularly clean and enables precise fork positioning. Ideal for emptying containers and boxes with closed fork pockets on the bottom. The DZVW-GS type is combined with sideshift. These attachments are delivered with bolt-on forks.
The carton and appliance clamps are designed for handling home appliances and boxed goods. Arms can be rigid, with single articulation or with triple articulation – we can choose the right solution depending on the application we need it for. The double T steel profile frame allows reduced lost load centre.

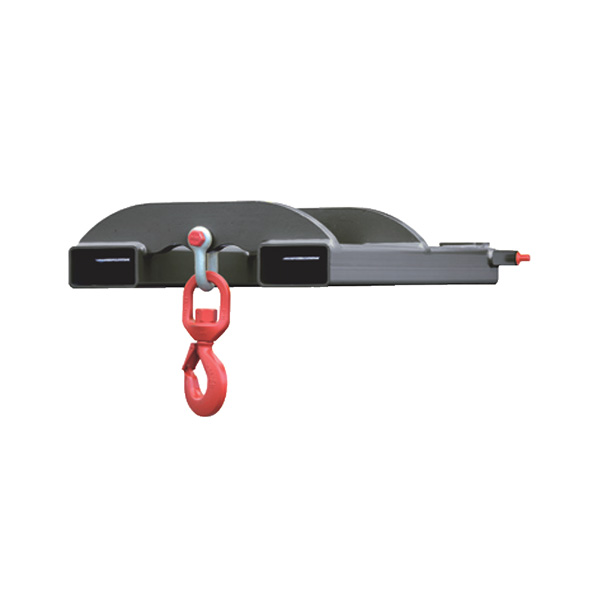

The KFG type crane jib is a fork mounted version, it can be mounted very quickly. Retaining bolts behind the fork heels keep the attachment stable. It has fixed length and 2 hook positions. The KFTG type is a telescopic version and has 8 hook positions. The length of the jib can be extended mechanically.
The LSCH type hydraulic bucket is particularly suitable for moving loose, bulk materials such as grain, legumes and fertilizer. In agriculture, the relatively narrow blade width is important, as it often has to be emptied into a silo or hopper. Certainly it is also suitable for handling building materials.
With the PGK type fork clamp we can carry loads not only on the forks but also between the forks by clamping. As the forks spread beyond the frame width, it is ideal for moving wide loads. The strong steel profiles allow for excellent visibility. Sideshifting is controlled by valve. The PGK-S type has constant sideshift. Fork clamps can be ordered only with bolt-on forks.

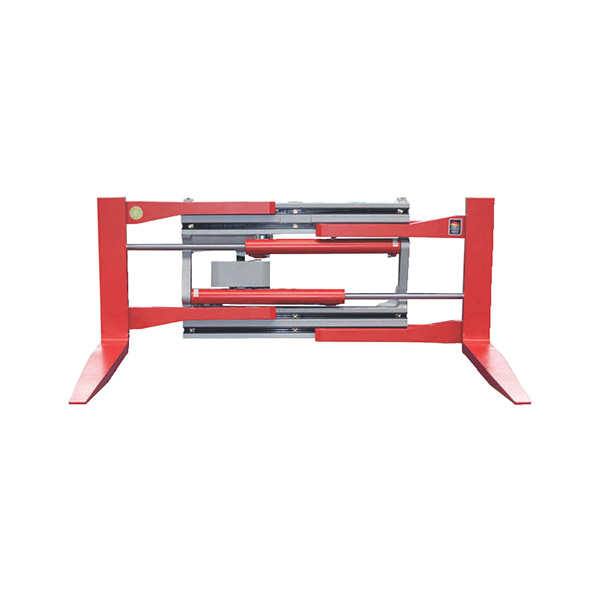

With the PHK type harbour clamp we can carry loads not only on the forks but also between the forks by clamping. The forks spread beyond the frame width. The specially shaped forks are ideal for picking up densely stacked goddds The clamp valve is built into the frame for protection. The PHK-S type has constant sideshift. Fork clamps can be ordered only with bolt-on forks.

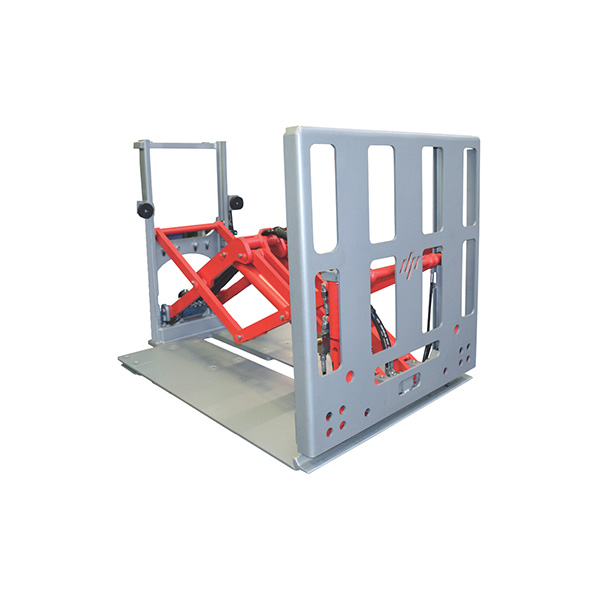

The KA type push-pull attachment is designed to handle load that is placed on slip sheets. You can push the load off the platens or pull the load onto the platens by grabbing the paper under the load. The AS type pusher only pushes off the load from the platens. The attachments can be ordered in fork mounted and in carriage mounted version as well.
